MVS methanol water hydrogen fuel cell emergency generator is a new clean energy emergency generator developed by the integration of methanol reforming hydrogen production technology and fuel cell power generation technol

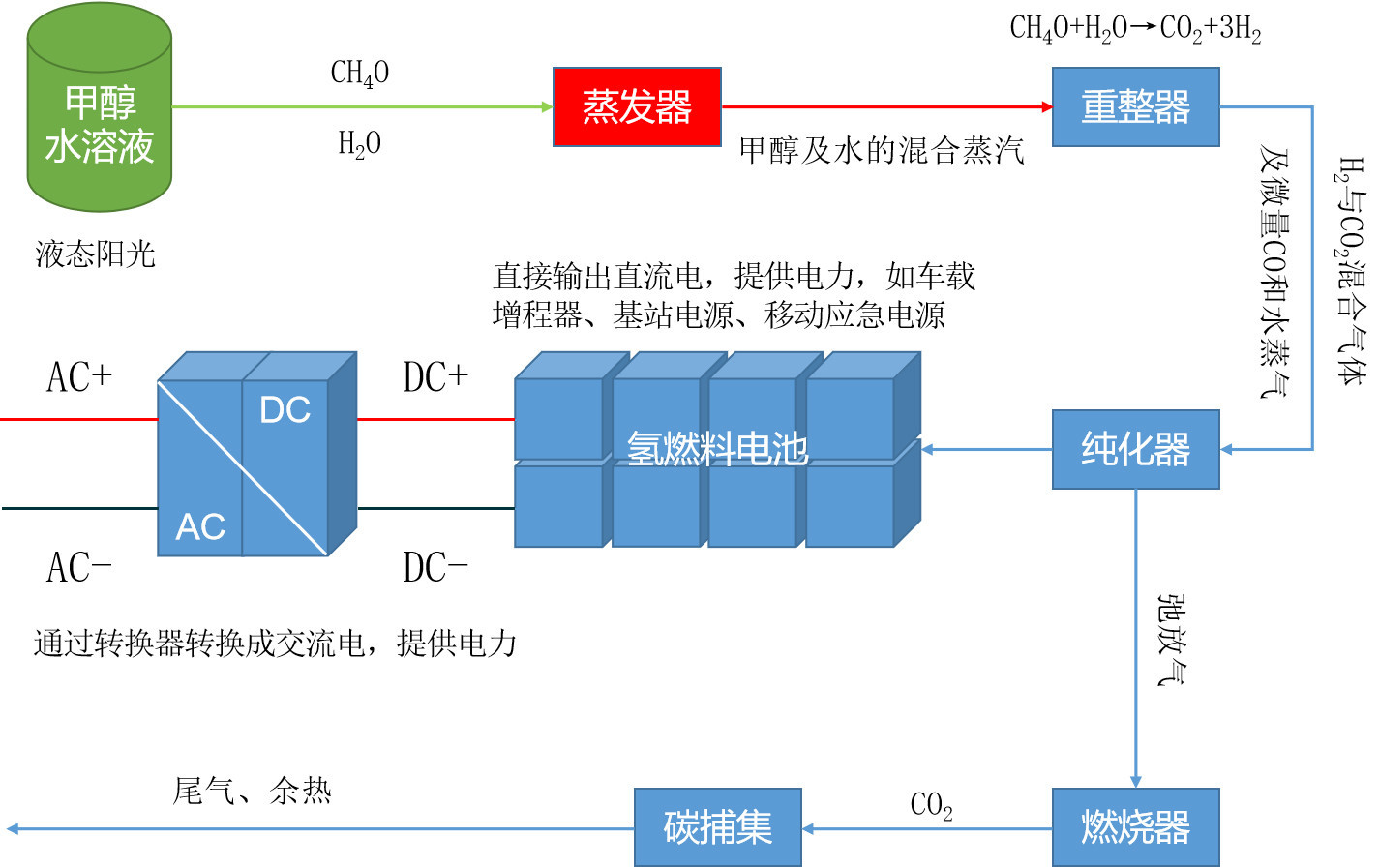

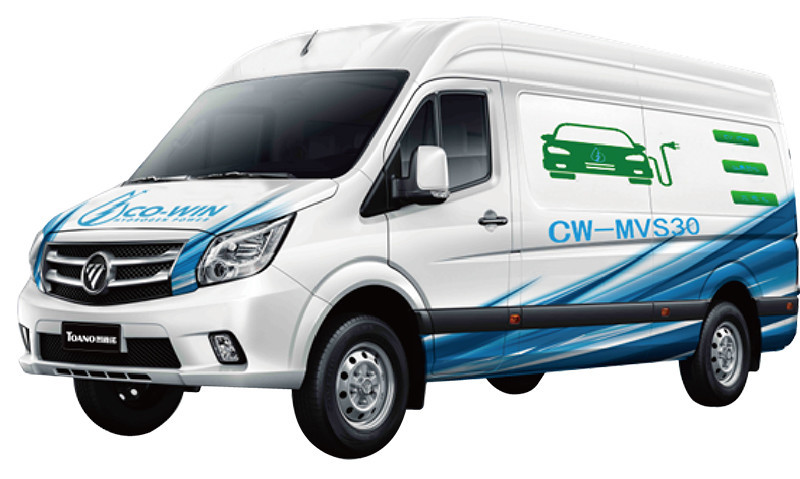

The MVS methanol water hydrogen fuel cell emergency power generation vehicle uses a small van as the carrier and carries a 10kW methanol reforming hydrogen production fuel cell power generation system, which can quickly arrive at the destination for power generation. This emergency generator car is a new emergency generator car which integrates the methanol reforming hydrogen production technology with the fuel cell power generation technology, uses the low-cost methanol water as the fuel to produce hydrogen, and then transmits the hydrogen to the fuel cell for power generation, and combines it with the electric truck. This generator car solves the problem that large generator cars cannot reach some areas due to narrow roads and rugged mountain roads. The power generation system carried by this emergency generator is a 10kW methanol water hydrogen fuel cell. The hydrogen production system adopts hg130 methanol reforming hydrogen production system with a hydrogen production rate of 130l/min. The purity of hydrogen produced by hg130 is greater than 99.99%. Hg130 hydrogen production system combines the internationally advanced palladium membrane purification technology, high thermal stability catalytic technology and aluminum alloy casting technology to make the optimal use temperature of the new high thermal stability catalyst consistent with the optimal separation temperature of the palladium membrane, so as to realize the temperature coupling, so as to solve a series of problems caused by the inconsistency between the reaction temperature of the copper zinc based catalyst and the purification temperature of the palladium membrane. Through the aluminum alloy with high heat transfer rate, the combustion heat release is timely supplied to the reactor to provide the reaction heat source, and efficiently and gently convert the methanol water raw material into hydrogen for the use of hydrogen equipment. The power generation system equipped with this emergency generator has the advantages of zero exhaust pollution and noise pollution (less than 60 dB), and has the ability to run for a long time. The promotion of methanol water reforming hydrogen production hydrogen fuel cell power generation technology not only meets the market demand, but also actively responds to the important call of national governments at all levels for the sustainable development of new energy.
Conserve energy ,reduce emissions
High energy density and energy saving; Integrated storage, manufacturing and transportation, safe and convenient; Long driving range and superior performance; Strong overload capacity and stable operation; Dual power mode, widely used.
Safe and efficient
Mobile hydrogen production solves the problems of hydrogen production, storage and transportation at one stroke; Methanol has a wide range of sources and low cost. Its hydrogen storage weight density is as high as 12.5wt%. It is better than liquefaction, high pressure and other hydrogen storage technologies.
Hybrid
The hydrogen fuel cell and the power cell form a hybrid system, which is the main and auxiliary power of each other, independent and complementary, and can generate electricity continuously for a long time; Hydrogen fuel cell is not only a range extender, but also a charging pile and a mobile power station.
Under the current energy structure, methanol water hydrogen production + hydrogen fuel cell has the lowest emissions, and the products are only water and carbon dioxide, which is only 1/2 of the pure electric vehicle technology path.
